4-layer PCB

Friday September 18 2026

In today’s electronic product design, 4-layer 1.6 mm PCBs have become the preferred solution for many engineers. This structure strikes a perfect balance between complexity, cost, and performance, making it particularly suitable for medium-complexity circuit designs.

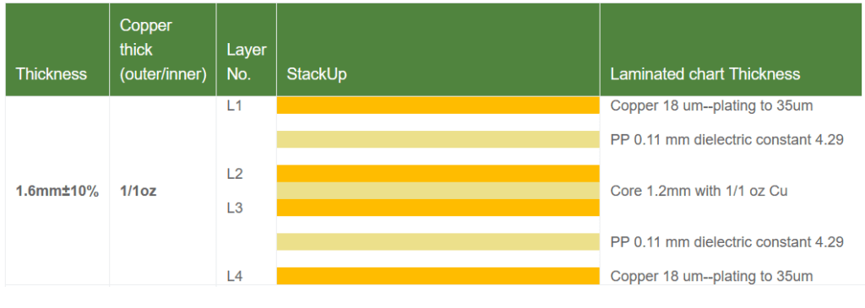

Standard Stackup Structure of 4-Layer 1.6mm PCB

The standard 4-layer 1.6mm PCB typically adopts the classic “signal layer/ground layer/power layer/signal layer” configuration with the following arrangement:

  1. Top Layer (L1): Signal layer      (outer), for component placement and high-speed signal routing
  2. Inner Layer 1 (L2): Ground plane      (GND), providing low-impedance return paths
  3. Inner Layer 2 (L3): Power plane      (VCC), for power distribution
  4. Bottom Layer (L4): Signal layer      (outer), for auxiliary routing and component placement


This structure uses prepreg (PP, typically 2116 type, about 0.12mm thick) to laminate the layers together, forming a finished board with a total thickness of 1.6mm. A typical material thickness distribution example is as follows:

Layer

Material/Description

Thickness (Example)

Top Layer

Signal layer (1oz copper)

0.035mm

Prepreg

Dielectric (FR-4)

0.2mm

Inner Layer 1

Ground plane (1oz copper)

0.035mm

Core

Dielectric (FR-4)

0.8mm

Inner Layer 2

Power plane (1oz copper)

0.035mm

Prepreg

Dielectric (FR-4)

0.2mm

Bottom Layer

Signal layer (1oz copper)

0.035mm


Historical Origins of 1.6mm Thickness as Industry Standard

The 1.6mm (approximately 63mil) thickness becoming an industry standard for PCBs is no coincidence but has deep historical roots. During the vacuum tube era, phenolic resin laminates were typically produced at 1/16 inch (about 1.6mm) thickness, and matching connectors and other components were designed for this specification, gradually forming a complete industrial chain standard.

With technological advancements, although PCB thickness ranges have now expanded to 0.4-3.0mm or even wider, 1.6mm remains the default choice for most electronic products due to its good mechanical strength, manufacturing convenience, and cost-effectiveness. Especially for 4-layer boards, 1.6mm thickness provides ideal interlayer insulation and structural stability.

Key Design Considerations for 4-Layer 1.6mm PCB

Impedance Control and Signal Integrity

In high-speed circuit design, impedance control is crucial. The 4-layer 1.6mm PCB provides clear reference planes for signals through dedicated ground and power layers, greatly simplifying impedance matching design. Typical design values include:

  • Single-ended signals: 50Ω±10%
  • Differential pairs: 100Ω±10%

By precisely controlling trace width (e.g., 0.195mm), spacing, and dielectric thickness, engineers can easily achieve target impedance values. TUOGEE’s engineering team has extensive experience in impedance control and can provide professional advice for your design.

Power Distribution and Decoupling Design

The advantages of dedicated power layers include:

  • Lower power impedance reduces voltage drop
  • Providing uniform power distribution
  • Facilitating placement of decoupling capacitors

It is recommended to place decoupling capacitors of appropriate values near power pins to form a low-impedance power distribution network (PDN).

Electromagnetic Compatibility (EMC) Optimization

The stackup structure of 4-layer 1.6mm PCBs naturally provides good EMC performance:

  • Ground layers provide electromagnetic shielding
  • Reducing the loop area lowers the radiation
  • Further shielding optimization can be achieved by adjusting      prepreg thickness

Material Selection and Performance Parameters

Core Material Options

  1. FR-4: Most commonly used substrate,      offering good mechanical strength and electrical performance with high      cost-effectiveness
  2. High-frequency laminates: Suitable      for GHz-level high-frequency applications with a more stable dielectric      constant
  3. Metal-core substrates: Excellent      thermal performance, ideal for high-power applications
  4. Ceramic substrates: Perfect choice      for ultra-high frequency and high-temperature applications

Key Performance Parameters

  • Density: 1.05-1.2g/cm³ (240x420mm      board weighs about 100g)
  • Copper thickness: Typically 1oz      (35μm), can increase to 2-3oz for high-current areas
  • Temperature resistance:      Conventional FR-4 Tg value 130-180°C, high-temperature models can exceed      200°C
  • Solder mask: Liquid epoxy or      polymer, typically 15-25μm thick

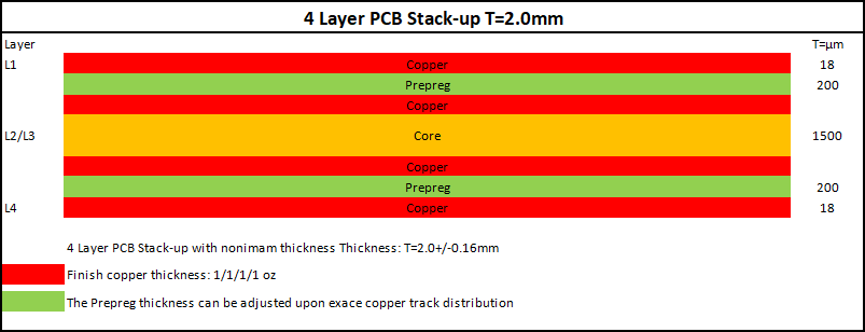

Comparison and Applications of 4-Layer PCBs with Different Thicknesses

While 1.6mm is the industry standard, other thicknesses have their applicable scenarios:

Thickness

Characteristics

Typical Applications

0.8mm

Space-saving, more flexible

Portable devices, small consumer   electronics

1.0mm

Balanced thickness and strength

Industrial control modules, communication   equipment

1.2mm

Moderate mechanical strength

Automotive electronics, medical devices

1.6mm

Standard thickness, best   cost-performance ratio

Most consumer and industrial   electronics

2.0mm+

Ultra-high mechanical strength

Power modules, heavy-duty equipment

It’s worth noting that non-standard thicknesses (such as 0.8mm or 2.0mm) may require additional costs and should be considered comprehensively at the design stage.


Manufacturing Process and Quality Control Points

The manufacturing process for 4-layer 1.6mm PCBs includes:

  1. Inner layer pattern transfer and etching
  2. Lamination (180-200°C, high pressure)
  3. Drilling (mechanical or laser)
  4. Hole metallization (electroless copper plating)
  5. Outer layer pattern transfer
  6. Solder mask and surface finish
  7. Electrical testing and final inspection

TUOGEE employs advanced AOI (Automated Optical Inspection) and flying probe testing to ensure the quality of each PCB, with impedance control accuracy reaching ±7%, far exceeding the industry standard of ±10%.

Frequently Asked Questions

Q: Why do most interface standards adapt to 1.6mm thickness?
A: This is an industry standard formed historically, as early connectors were designed for 1/16 inch (≈1.6mm), and the supporting industrial chain developed accordingly.

Q: How much more expensive is a 4-layer 1.6mm PCB compared to a double-sided board?
A: Typically 1.5-2 times the cost of double-sided boards, but through design optimization (such as standard stackup) and volume production, TUOGEE can offer highly competitive prices.

Q: How to determine whether my project needs 1.6mm or other thicknesses?
A: Consider factors including: mechanical strength requirements, connector compatibility, thermal requirements, and cost budget. TUOGEE engineers can provide free evaluations.

Recommendations for Selecting Professional PCB Manufacturing Services

When choosing a PCB manufacturer, pay attention to:

  • Lamination process precision (affects impedance control)
  • Material certifications (UL, RoHS, etc.)
  • Quality control system
  • Technical support capabilities

As a professional PCB manufacturer, TUOGEE has 17 years of experience in producing 4-layer boards, offering comprehensive services from design support to mass production. We specialize in the precision manufacturing of 1.6mm thick PCBs, offering industry-leading impedance control accuracy.

Get Your Custom PCB Solution Now:
Contact TUOGEE Engineers | Online Quotation System

Whether you need standard 1.6mm 4-layer boards or custom thicknesses, TUOGEE can provide high-quality, highly reliable products to help successfully implement your electronic projects.
