01

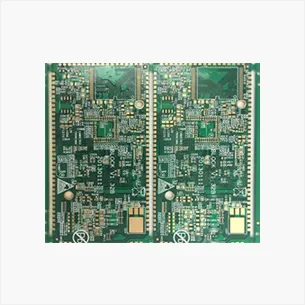

Single Layer Flex
Most affordable option
Excellent tight bend radii
Ultra-lightweight
Material：FR-4 ；Layer：4L；
FinishBoardThickness：1.2mm;
MinLineWidth/Space：4/3mil；
MinHoleSize：0.15mm; SurfaceFinish：ENIG
Most affordable option
Excellent tight bend radii
Ultra-lightweight
Enhanced EMI shielding
Power & ground planes
Property | PIPolyimide | PETPolyester | PENPolyethylene Naphthalate | LCPLiquid Crystal Polymer |
Temp Range | −65°C to 260°C | −40°C to 105°C | −50°C to 155°C | −200°C to 240°C |
Dielectric Constant | 3.4 – 3.5 | 3.3 | 3.2 | 2.9 – 3.2 |
Moisture Absorption | 2.5 – 3.0% | 0.4% | 0.3% | <0.04% |
Tensile Strength | 180 MPa | 180 MPa | 220 MPa | 200 MPa |
Flex Endurance | ||||
RF Performance | ||||
Cost Level | ||||
Best For | Standard flex circuits, aerospace | Consumer electronics, disposables | Automotive, industrial | RF, microwave, 5G antenna |
Seamlessly integrating flexible and rigid substrates to eliminate connectors, reduce weight, and maximize space in high-performance electronics.
High-quality flexible and rigid-flex PCBs engineered for dynamic applications where space, weight and movement matter.
Superior thermal management with Alumina (Al2O3) and Aluminum Nitride (AlN) substrates for high-power, high-frequency, and aerospace applications.
Leading-edge rigid PCB manufacturing services from single-sided to complex 56-layer multilayer boards with industry-leading precision.
Expert reverse engineering services to convert physical PCB samples into complete CAD files, Schematics, and BOM lists with guaranteed 100% precision.
Material：Ceramic substrate；Layer：1L；
FinishBoardThickness：2.4mm;
MinLineWidth/Space：10/8mil；
MinHoleSize：0.6mm; SurfaceFinish：ENIG
Material: FR‑4; Layers: 4L;
Finished board thickness: 1.6mm;
Trace width / trace spacing: 6/5mil;
Minimum hole size: 0.2mm;
Surface finish: OSP
Material: FR‑4; Layers: 4L;
Finished board thickness: 2.0mm;
Trace width / trace spacing: 6/8mil;
Minimum hole size: 0.3mm;
Surface finish: Immersion Tin
Material：FR-4 ；Layer：4L；
FinishBoardThickness：1.2mm;
MinLineWidth/Space：4/3mil；
MinHoleSize：0.15mm; SurfaceFinish：ENIG
