Diode

As the most fundamental and critical semiconductor component, diodes are used in virtually every circuit, from simple power rectification to complex high-frequency signal processing. The performance of diodes directly impacts the reliability and efficiency of the entire electronic system. With 17 years of experience as a PCB manufacturing expert, TUOGEE offers high-quality, one-stop PCB solutions to ensure that your designs achieve optimal performance from components to finished boards.

The Importance of Diode Selection

Diodes control the unidirectional flow of current in electronic circuits. Choosing the wrong diode may result in

• Low power efficiency (excessive      forward voltage drop when using standard rectifier diodes instead of      Schottky diodes)
• System instability (electrostatic      damage due to inadequate TVS diode protection)
• Signal integrity degradation (improper      point-contact diode selection in high-frequency applications)
• Reduced product lifespan (unstable      operation from improper Zener diode selection)

We frequently encounter clients seeking help for failed PCB designs, where the root cause often traces back to improper diode selection. For example, an industrial control equipment manufacturer initially used standard rectifier diodes, resulting in only 78% power module efficiency. After our professional recommendation to switch to low-VF Schottky diodes, efficiency improved to 92%, with a 15°C reduction in temperature rise.

Our Professional Diode Procurement Advantages

As a one-stop PCB solution provider, we have built a robust diode supply chain network, offering:

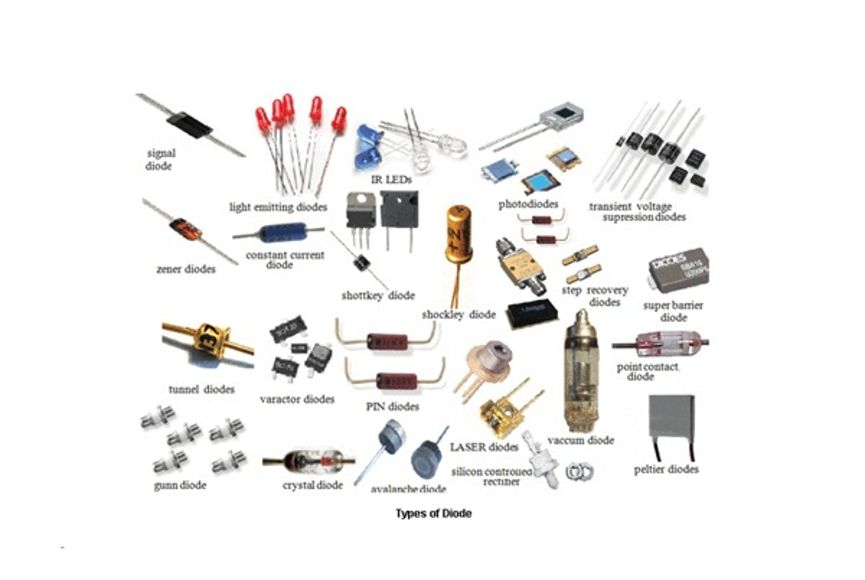

1. Full-Category Diode Support:      Covering 2000+ models, from basic PN-junction diodes to specialized PIN      diodes and varactor diodes.
2. Authorized Supplier Channels:      Partnerships with leading brands like ON Semiconductor, Vishay, and Diodes      Inc. ensure component authenticity.
3. Technical Matching Service: Our      engineering team recommends the most suitable diode types based on your      application (power/signal/protection).
4. Cost Optimization Solutions: For      high-volume production, we provide alternative model suggestions to reduce      BOM costs without compromising performance.

Diodes and PCB manufacturing complement each other

After purchasing the components, they must be perfectly mounted on the PCB board. PCB design is also very important, as it affects the stability and reliability of the finished product. The value-added services we provide include:

• Thermal Design Analysis: Optimizing      high-current rectifier diode placement to prevent localized overheating.
• Signal Integrity Simulation:      Evaluating the impact of high-speed Schottky diodes on signal quality.
• ESD Protection Solutions: Designing      TVS diode protection networks for sensitive circuits.
• Manufacturability Review: Ensuring      diode packaging compatibility with PCB processes.

In a recent automotive electronics project, we redesigned the diode layout in an LED driver circuit, improving production yield from 83% to 99.6%. Additionally, by optimizing Zener diode selection, the voltage regulation accuracy increased by 30%.

Industry-Specific Diode Solutions

Different applications demand unique diode requirements:

Automotive Electronics:

• AEC-Q101-compliant automotive-grade diodes
• High-vibration-resistant TVS diode protection solutions
• Wide-temperature-range (-40°C to 150°C) Schottky rectifier      diodes

Industrial Control:

• High-current SCR (silicon-controlled rectifier) solutions
• High-isolation-voltage optocoupler diodes
• EMI-resistant fast-recovery diode arrays

Medical Devices:

• Low-leakage precision signal diodes
• Medical safety-compliant isolation diodes
• High-reliability Zener diodes for life-support equipment

IoT Products:

• Ultra-low-power MOSFET body diode optimization
• Photodiode solutions for energy harvesting
• Miniature package (SOD-323, etc.) diode components

One-stop solution from prototype to mass production

We understand that electronics development is an iterative process, offering flexible support:

1. Prototyping Phase:
• Rapid supply of small-batch, multi-variety diodes
• Free engineering sample testing
• PCB design review and diode selection advice
2. Pilot Production Phase:
• Supply chain risk assessment and backup solutions
• Diode parameter consistency testing
• Production test fixture development support
3. Mass Production Phase:
• Long-term stable diode supply assurance
• Batch traceability and quality documentation
• Continuous cost reduction and alternative solutions

A smart home client case demonstrated that our full-cycle services reduced their product transition time from prototype to mass production by 40%, eliminated diode-related quality issues, and lowered procurement costs by 22%.

Why choose TUOGEE?

In the competitive electronics manufacturing sector, we deliver technology-driven services:

• 17 Years of Specialized Experience:      Served 3800+ clients, completed 15000+ diode-related projects.
• UL/ISO9001 Certification: Strict      quality control ensures diode reliability.
• 48-Hour Rapid Prototyping:      Emergency project support, including diode procurement and PCB      manufacturing.
• Global Logistics Network:      Just-in-time (JIT) delivery to reduce client inventory pressure.
• Engineering Expert Team: FAEs with      an average of 10 years’ industry experience provide one-on-one support.

We understand that exceptional PCB manufacturing requires not only advanced equipment but also deep component expertise. Our thorough knowledge of diode characteristics enables us to deliver truly valuable solutions, not just circuit board fabrication.

Get Your Custom Diode Solution Now

No matter your product development stage, our expert team is ready to assist. Submit your requirements and receive:

• Initial proposal and quote within 1 hour
• Engineering feasibility feedback within 4 hours
• Full project implementation plan within 24 hours

For complex projects, we arrange on-site technical meetings to explore optimal diode applications. Let our professional diode expertise and PCB manufacturing experience safeguard your electronic designs.
